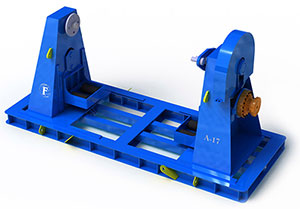

A-17 is our 60-tonne reel capacity spooling machine. It comes complete with hydraulically controlled under rollers to assist in loading/unloading in a dynamic environment. The Spooling unit comes equipped with a double Hagglund motor capable of delivering back tension up to 34 tonnes.
The spooling unit features certified lifting points and is accompanied by load test certificates.
|
Reel Size |
|
|
Spooler Dimensions |
|

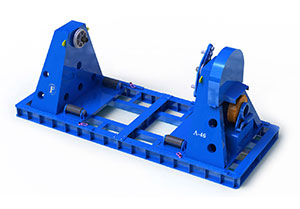

A-46 is our 100 Tonne reel capacity spooling machine. It comes complete with under rollers to assist in loading in a dynamic environment. The spooling unit comes equipped with a double hagglund motor capable of delivering back tension up to 34 Tonne.
The spooling unit features certified lifting points and is accompanied by load test certificates.
|
Reel Size |
Adjust to suit |
|
Spooler Dimensions |
|

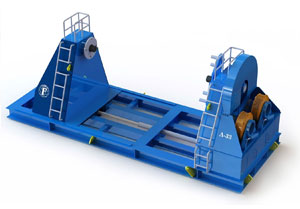

A-33 is a 150-tonne reel capacity spooling machine. The spooling unit can provide up to 64 tonnes of back tension. The machine is fully adjustable to accommodate reels of different sizes.
The spooling unit features certified lifting points and is accompanied by load test certificates.
|
Reel Size |
|
|
Spooler Dimensions |
|

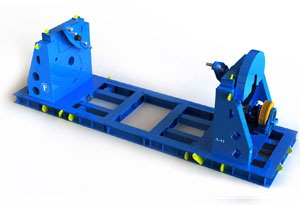

A-41 is our 300-tonne drum weight capacity high-performance spooling unit. The spooling unit is fully adjustable by hydraulics. The spooling unit can provide constant back tension up to 64 tonnes.
The spooling unit features certified lifting points and is accompanied by load test certificates.
|
Reel Size |
|
|
Spooler Dimensions |
|
The 400-tonne single drum winch or "Big Blue", as it is known, is robust and efficient. It is ideal for use in subsea deployment and has a "constant tension" ability for up to 385 tonnes.
|
Winch Specifications: |
|
|
Drum Dimensions |
|
|
150 Tonne Winch Dimensions |
|
